Construction

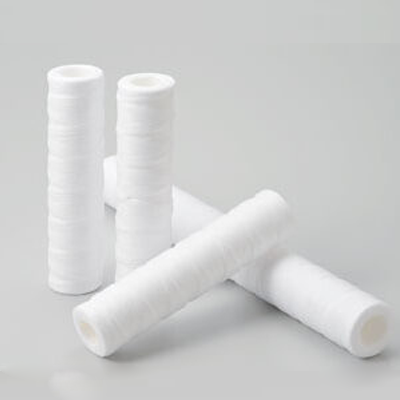

The CLEAL® CHW is an exclusive wound filter cartridge by JNC, made from polyester for both the filter element and the core.
The product offers excellent resistance to oils and solvents, good heat tolerance, and stable filtration accuracy.
Technical Specifications
| Type | CHW-01 | CHW-03 | CHW-05 | CHW-10 | CHW-25 | CHW-50 | CHW-75 | CHW-100 | CHW-150 |
| Filtration Rating (μm) | 1 | 3 | 5 | 10 | 25 | 50 | 75 | 100 | 150 |
Size
| Outer Diameter | 60 |
| Inner Diameter | 30 |
| Length | 250, 500 |
Applications
This product is commonly used in industries such as:
| 1 | Chemical industry (paints, inks) |
| 2 | Oil & gas industry |
| 3 | Metal processing industry; solvent recycling |
