Construction

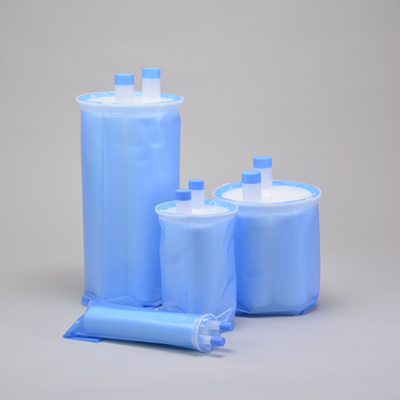

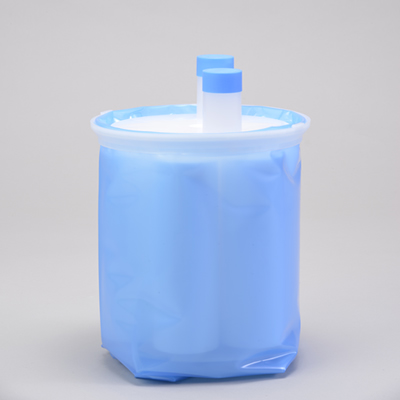

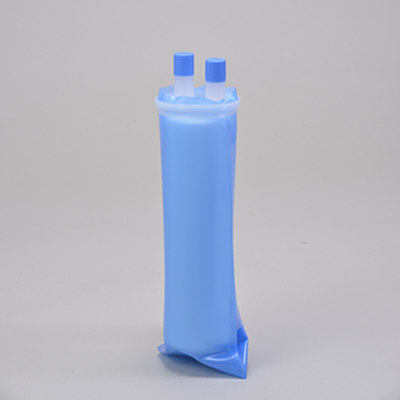

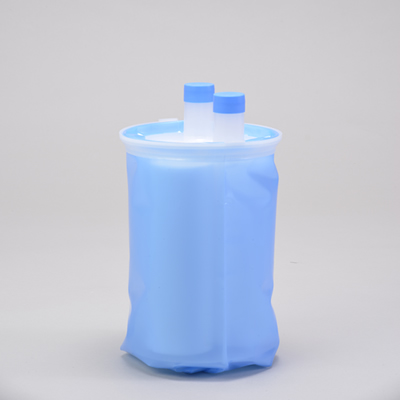

▪ Pack-type filter – the filter element and housing are integrated into a single, easily replaceable unit
▪ Material: Polyolefin
Key Features
▪Safe & Clean
The sealed pack structure prevents liquid leakage and protects operators from direct contact with chemicals or hazardous liquids.
▪Easy Replacement
The filter can be replaced by simply removing the entire Quick Pack, reducing machine downtime and simplifying maintenance tasks.
▪Compact Design
Its compact design allows installation in limited spaces and easy handling.
Applications
▪ Ideal for processes requiring high cleanliness:
Especially suitable for fine chemical, pharmaceutical, and food & beverage industries, where strict contamination control is required.
Components and Materials
| Component | Material |
| Bag | PE (Polyethylene) |
| Plastic Parts | PP – (To wetted)
NY – （Not wetted） |
Size
| Q (Type) | Length | |||
| 125mm | 250mm | 500mm | 750mm | |
| Q1 | ○ | ○ | ○ | – |
| Q3 | – | ○ | ○ | ○ |
| Q7 | – | ○ | ○ | ○ |
